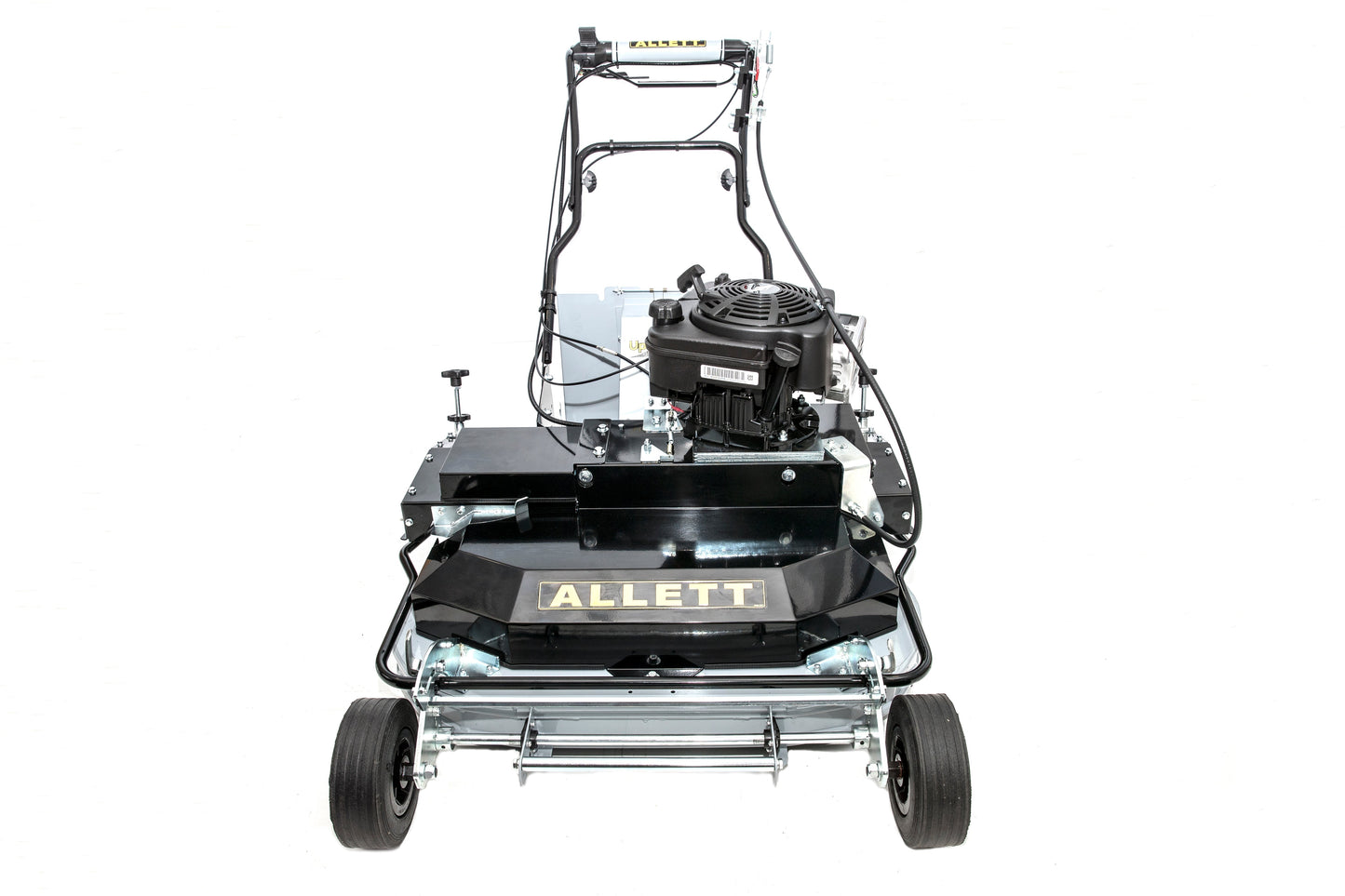

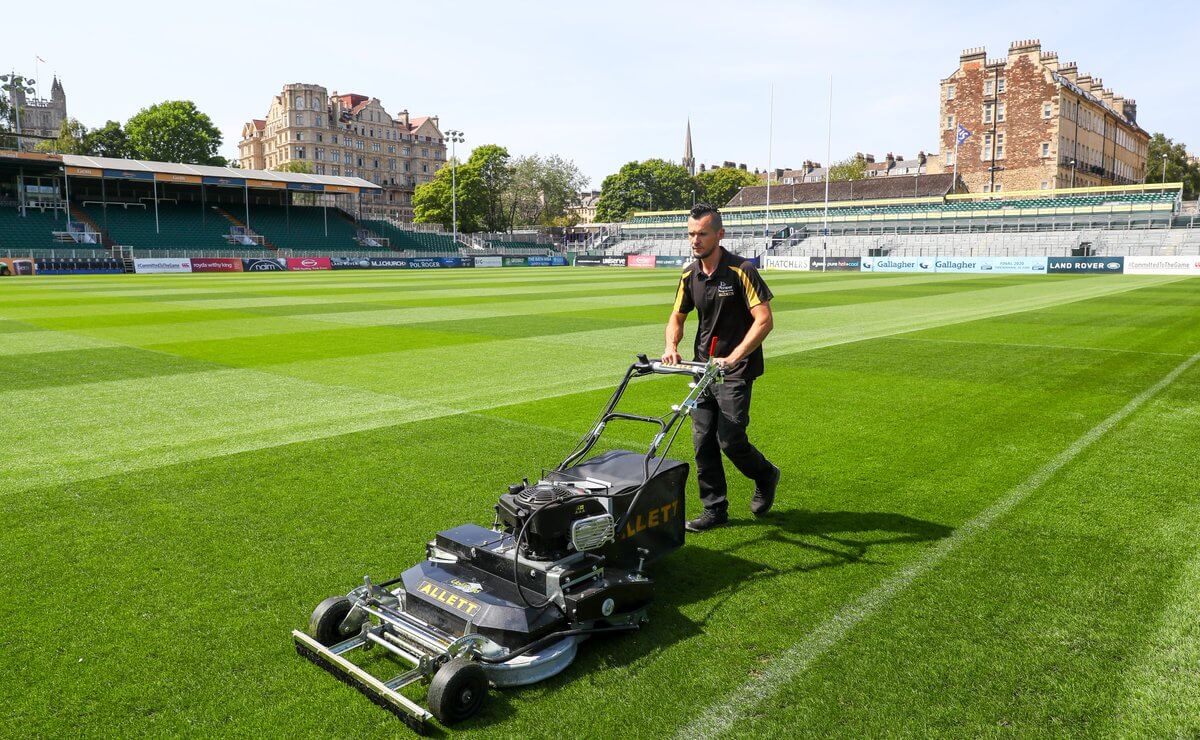

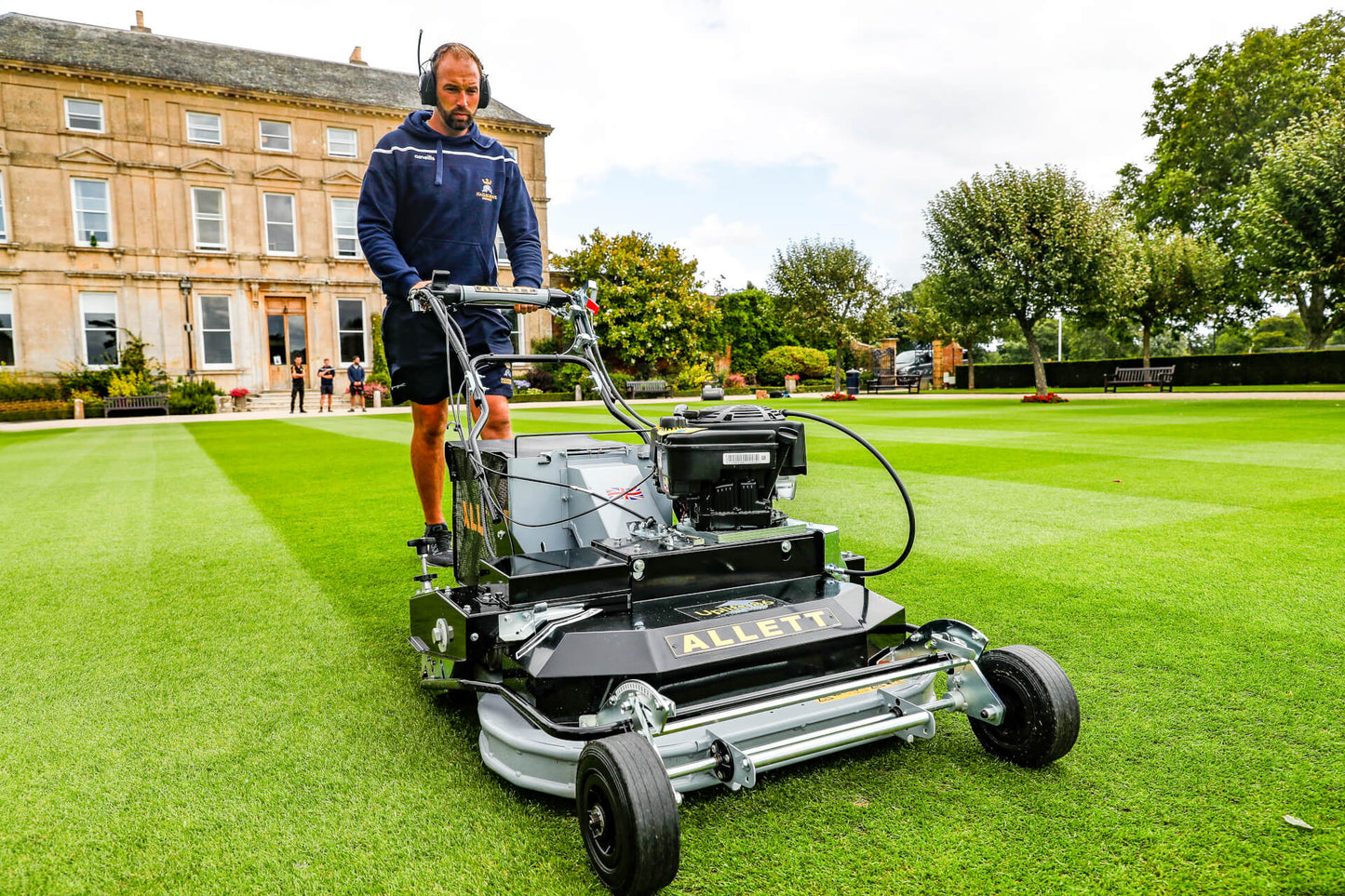

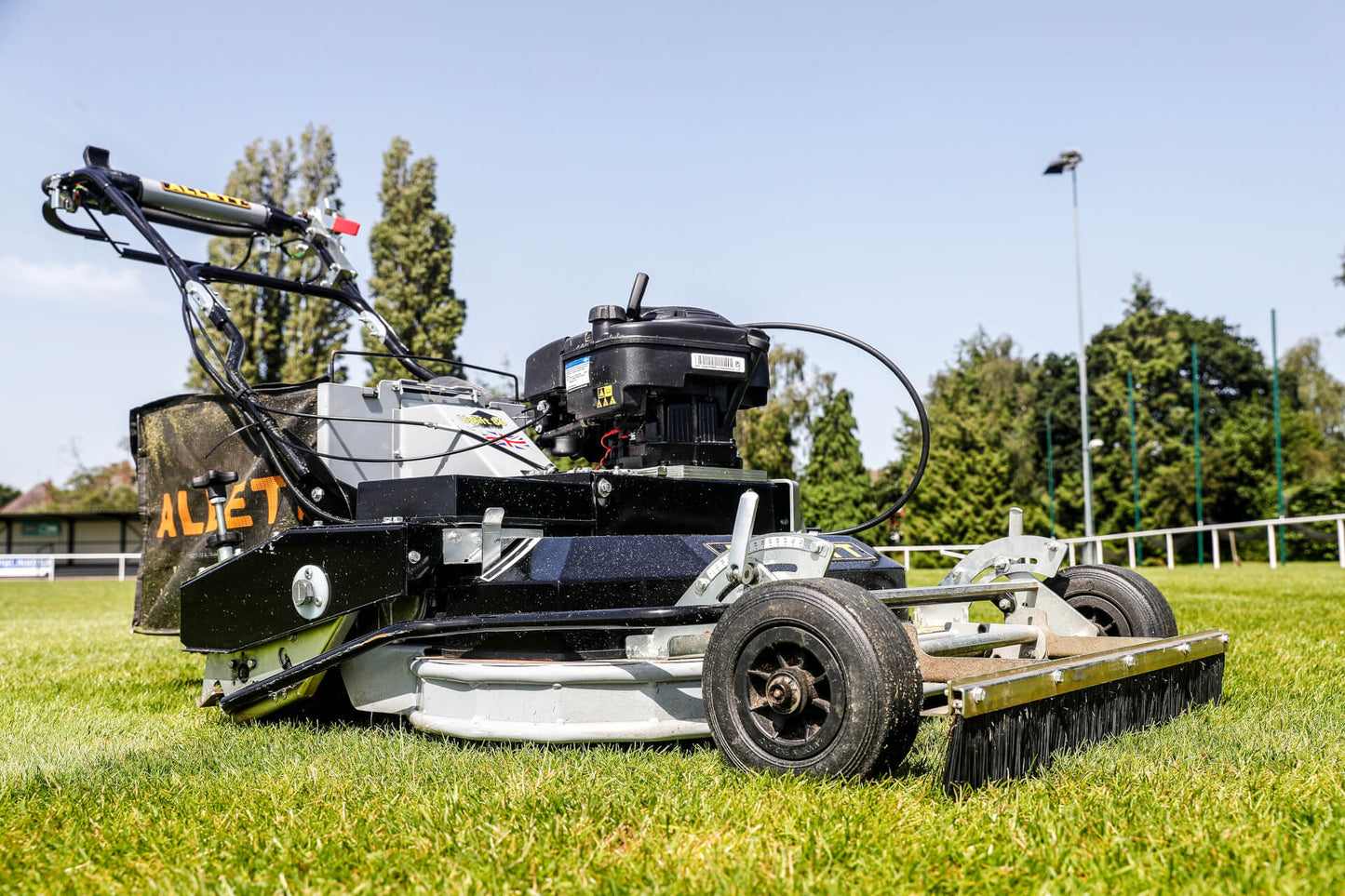

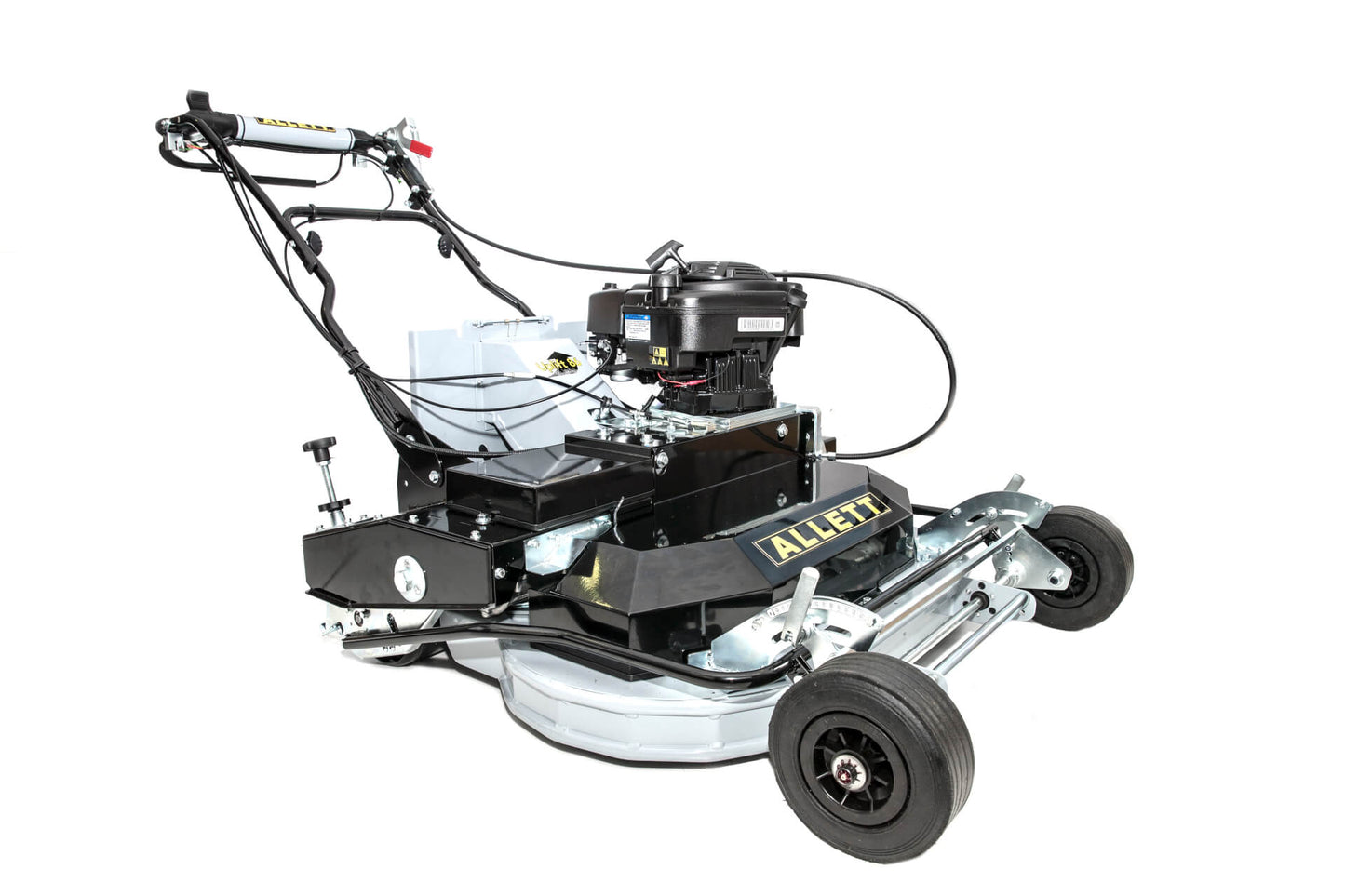

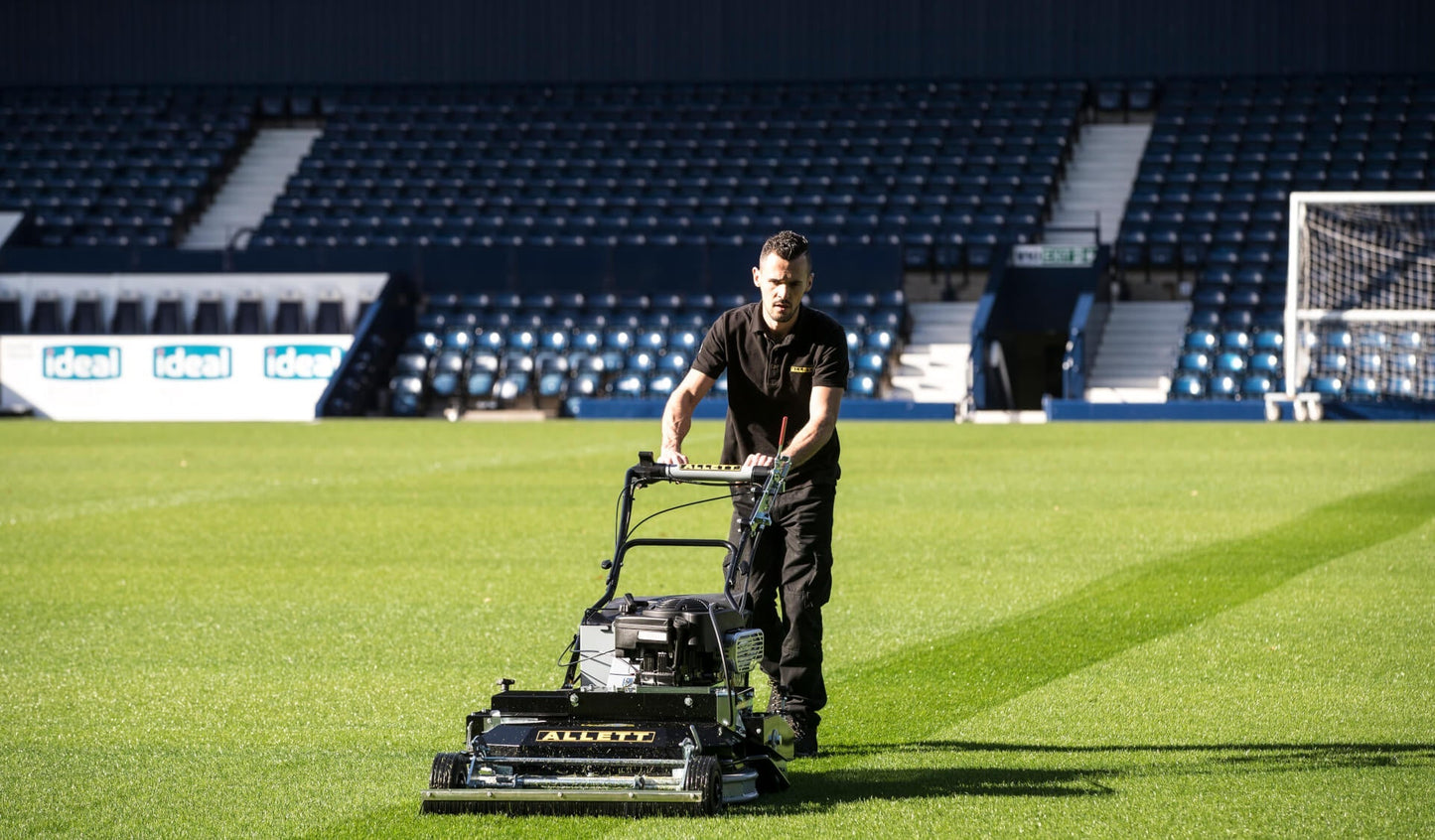

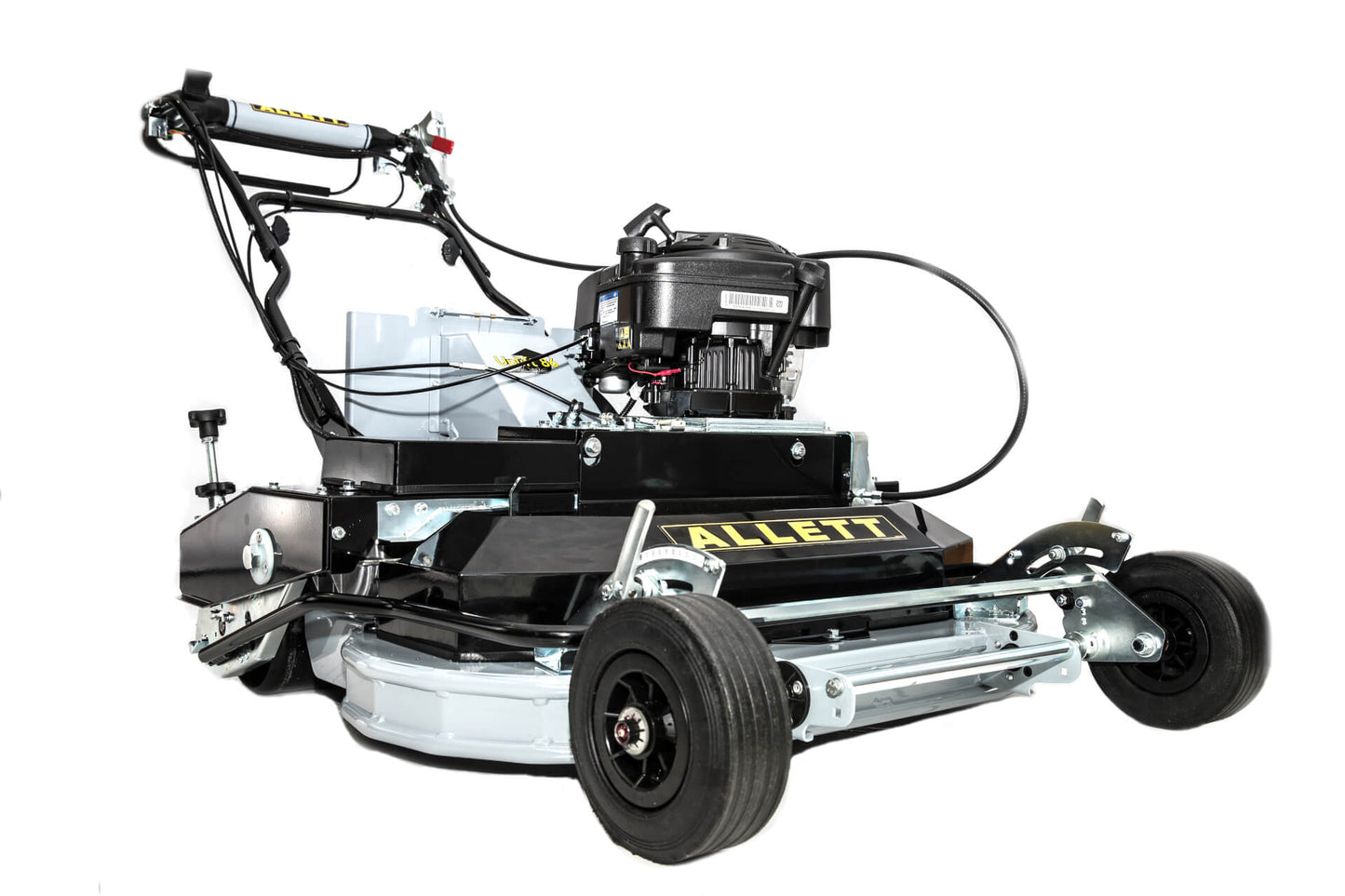

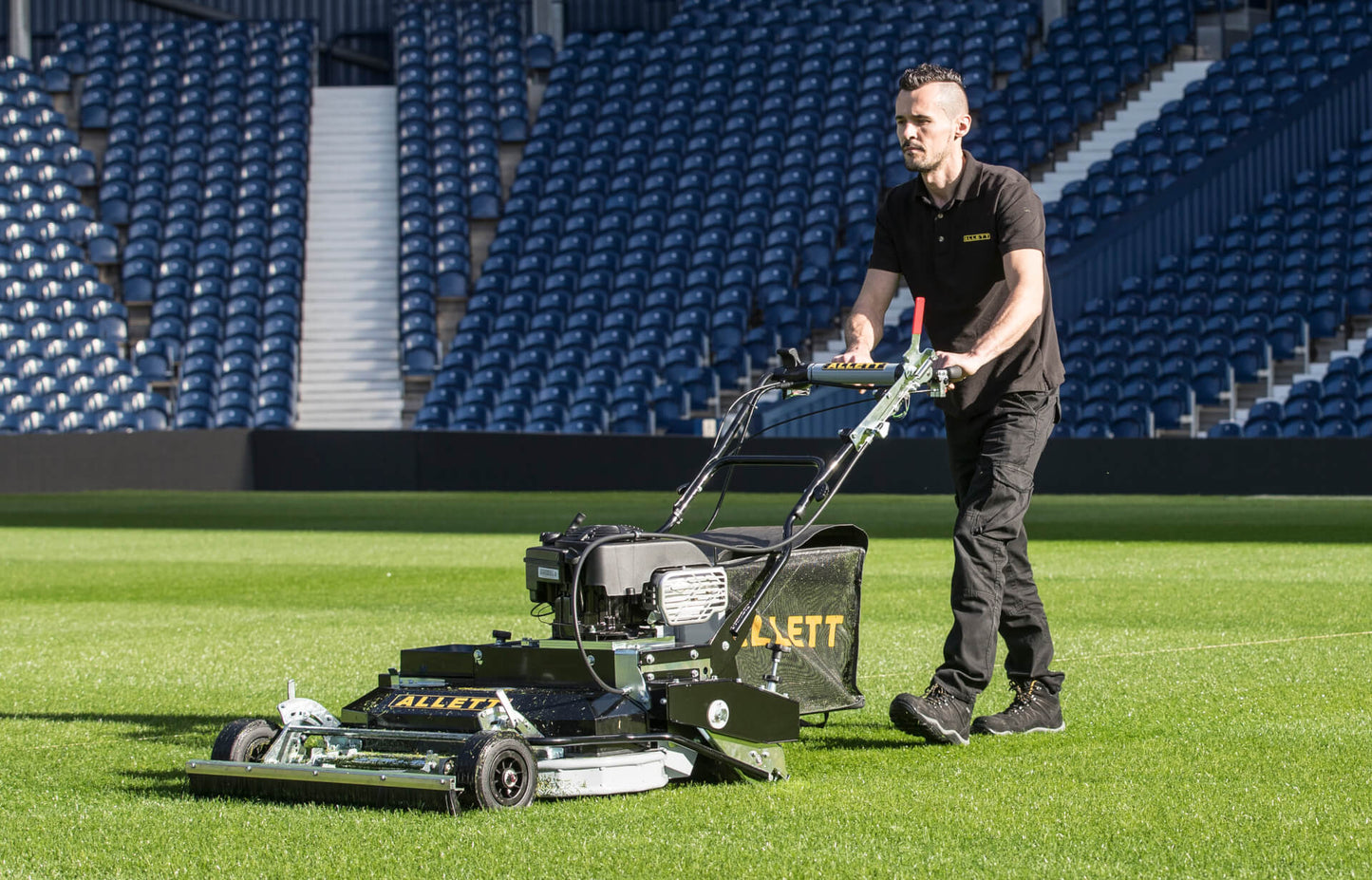

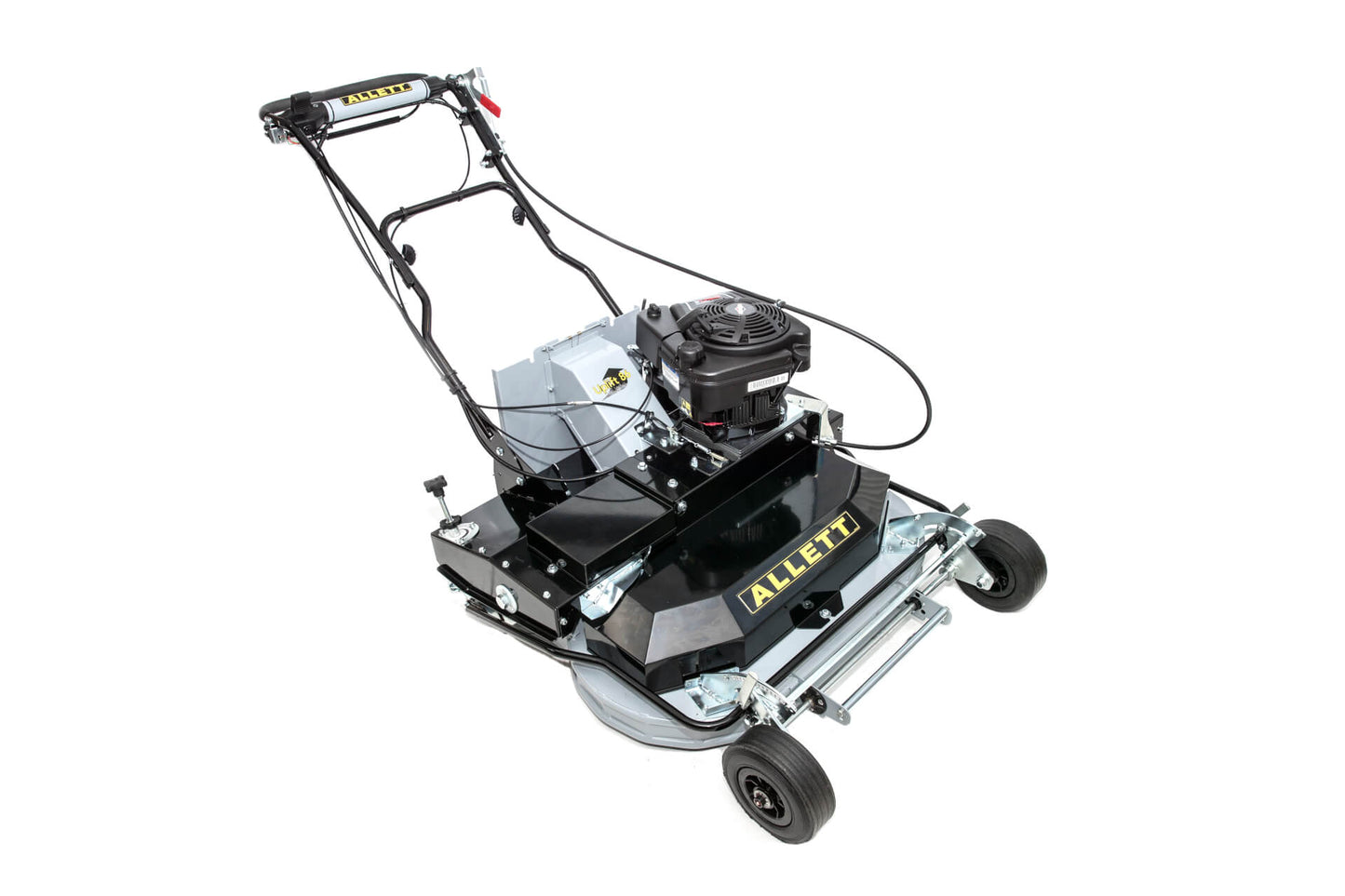

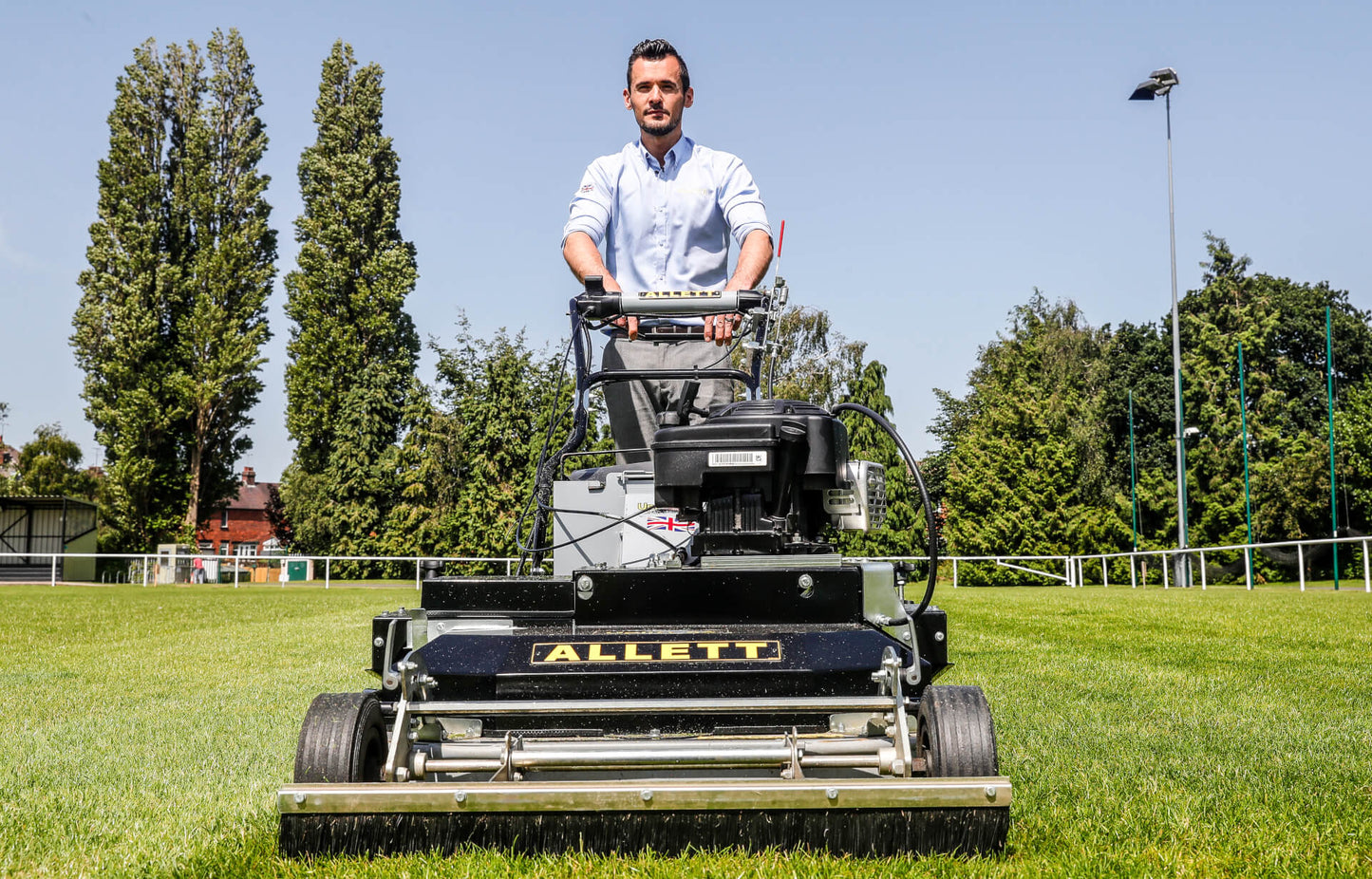

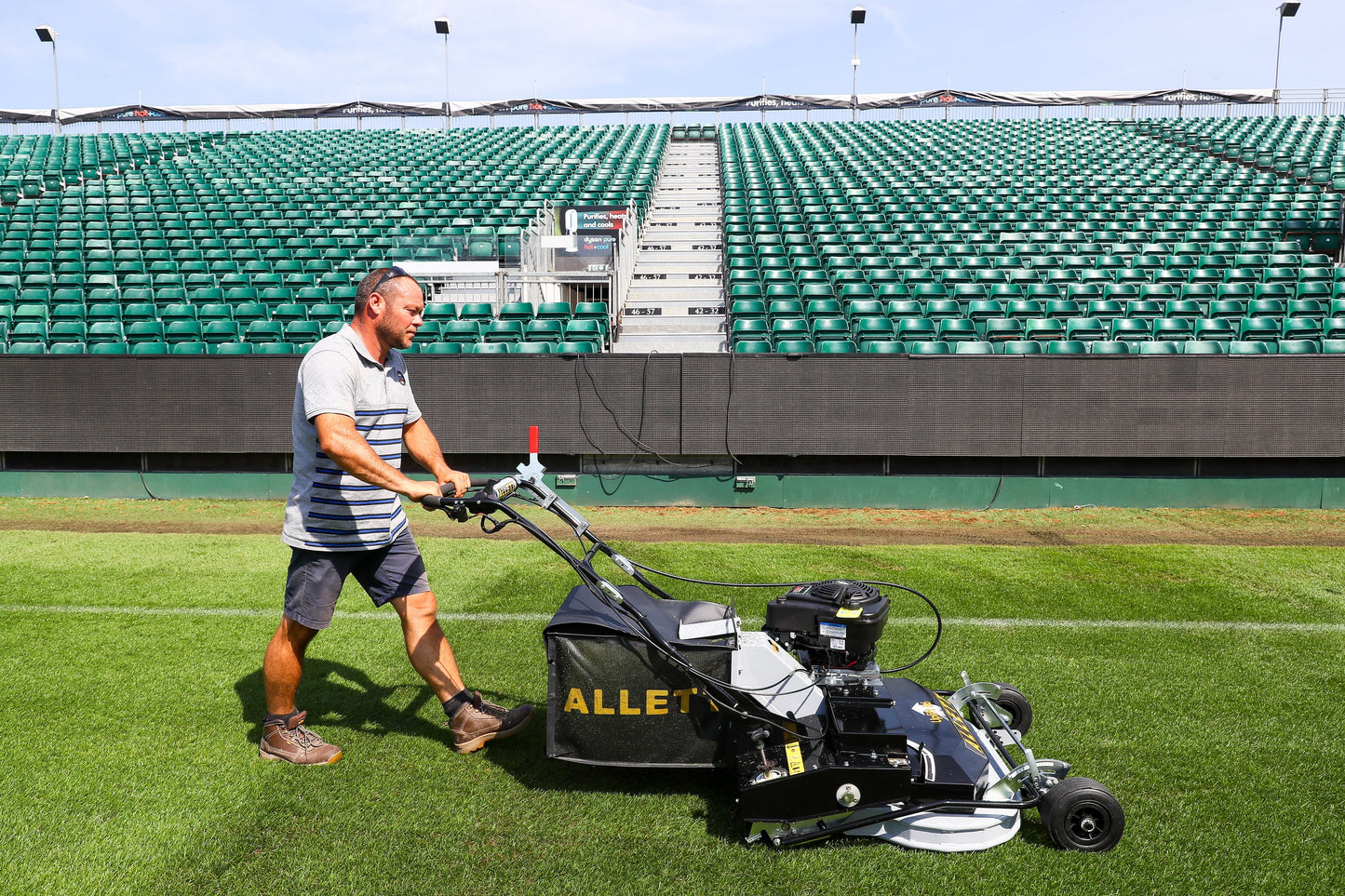

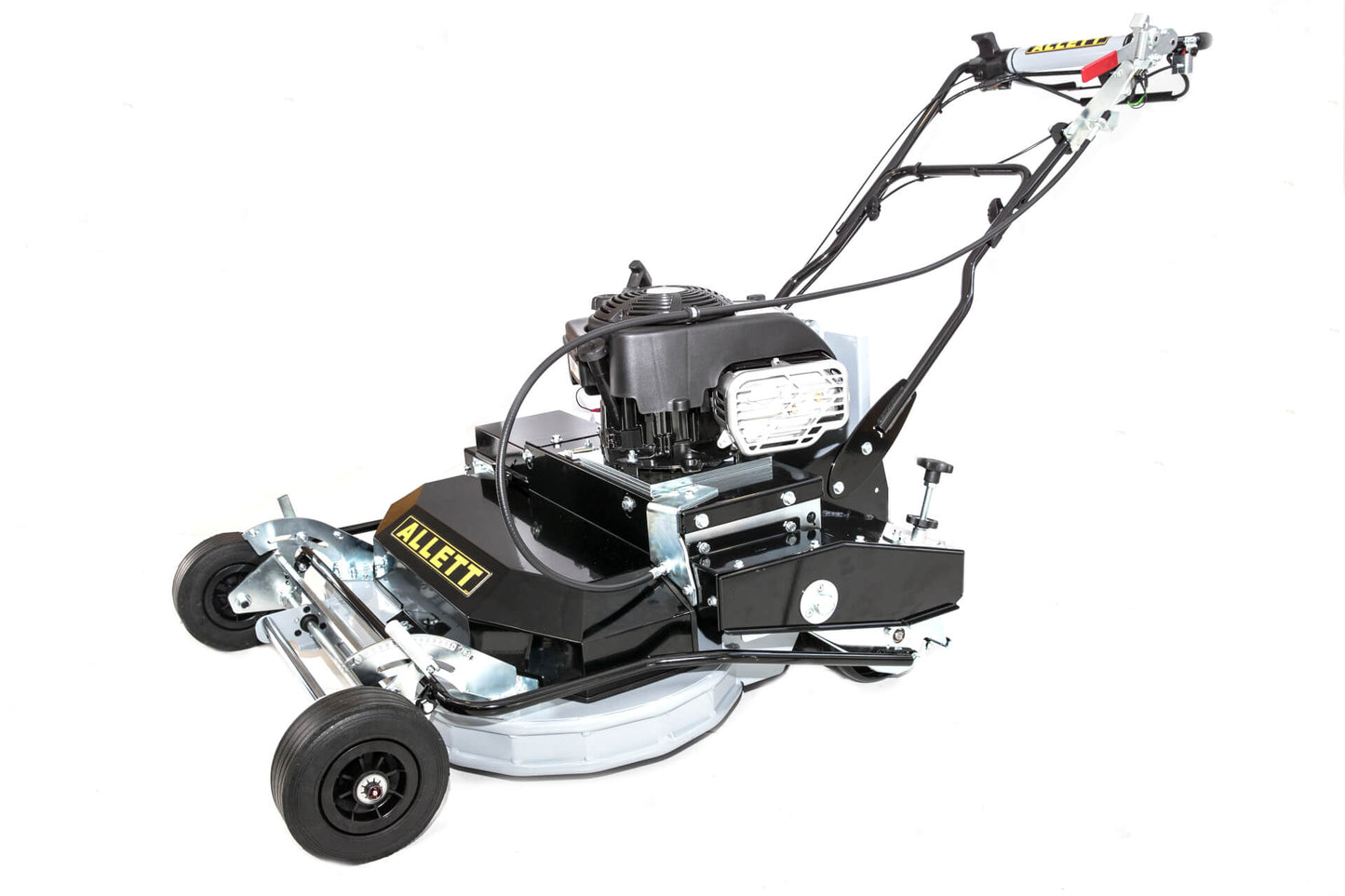

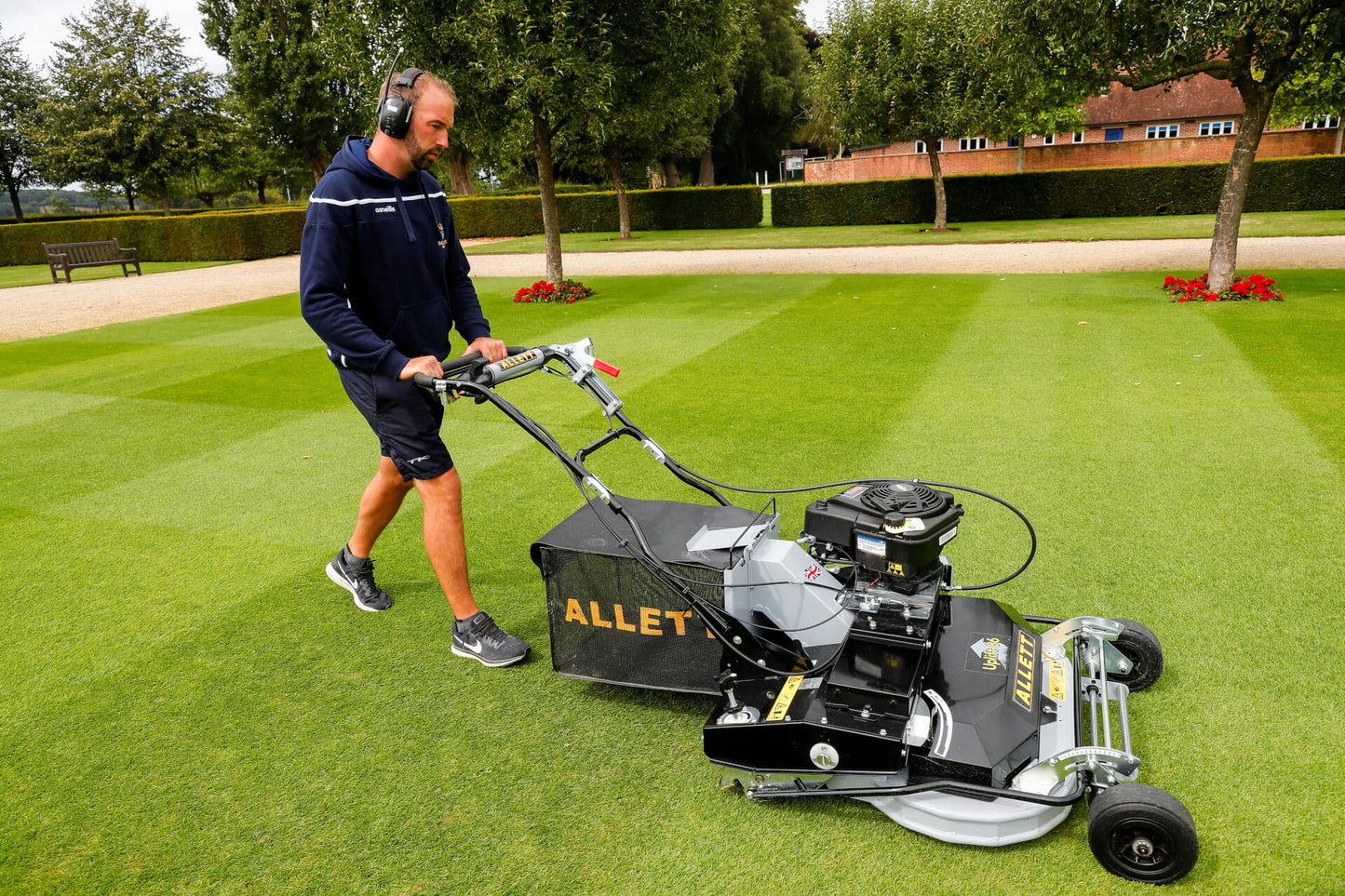

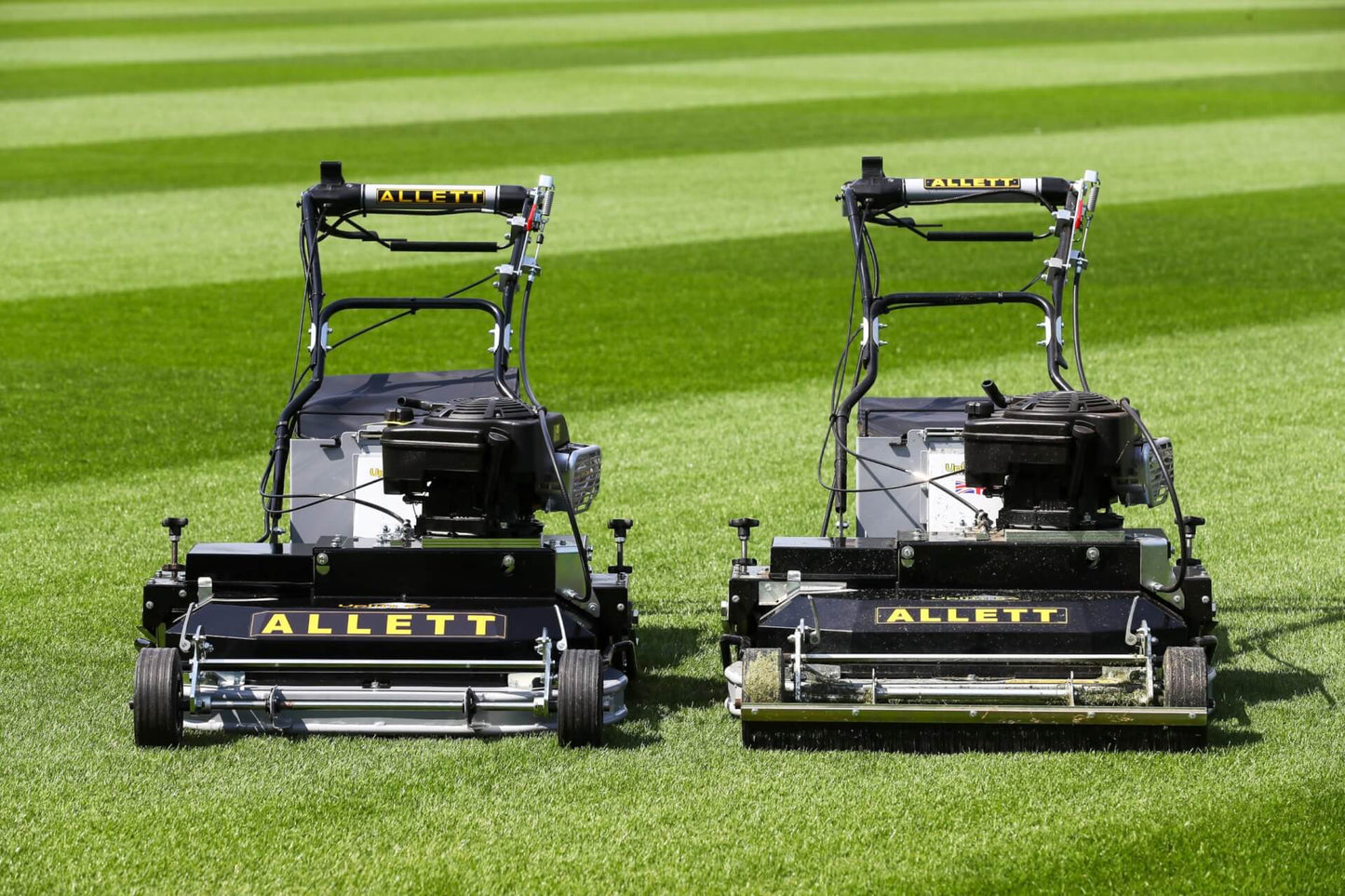

The Allett Uplift 86 is built on the experience gained with previous models, and the feedback of groundsmen, to create an 86cm/34” solid and dependable stadium rotary mower. Twin contra-rotating blades produce a high lift cut and vacuum for increased efficiency while a full-width rear roller produces the most perfect stripes. Ideal for debris collection after matches, the Uplift 86 features a five-speed heavy-duty gearbox which allows the operator to select a comfortable forward speed with greater control in small, intricate areas. Higher speed selection, up to 6.7km/h (4.2mph), quickly covers large areas for increased efficiency.

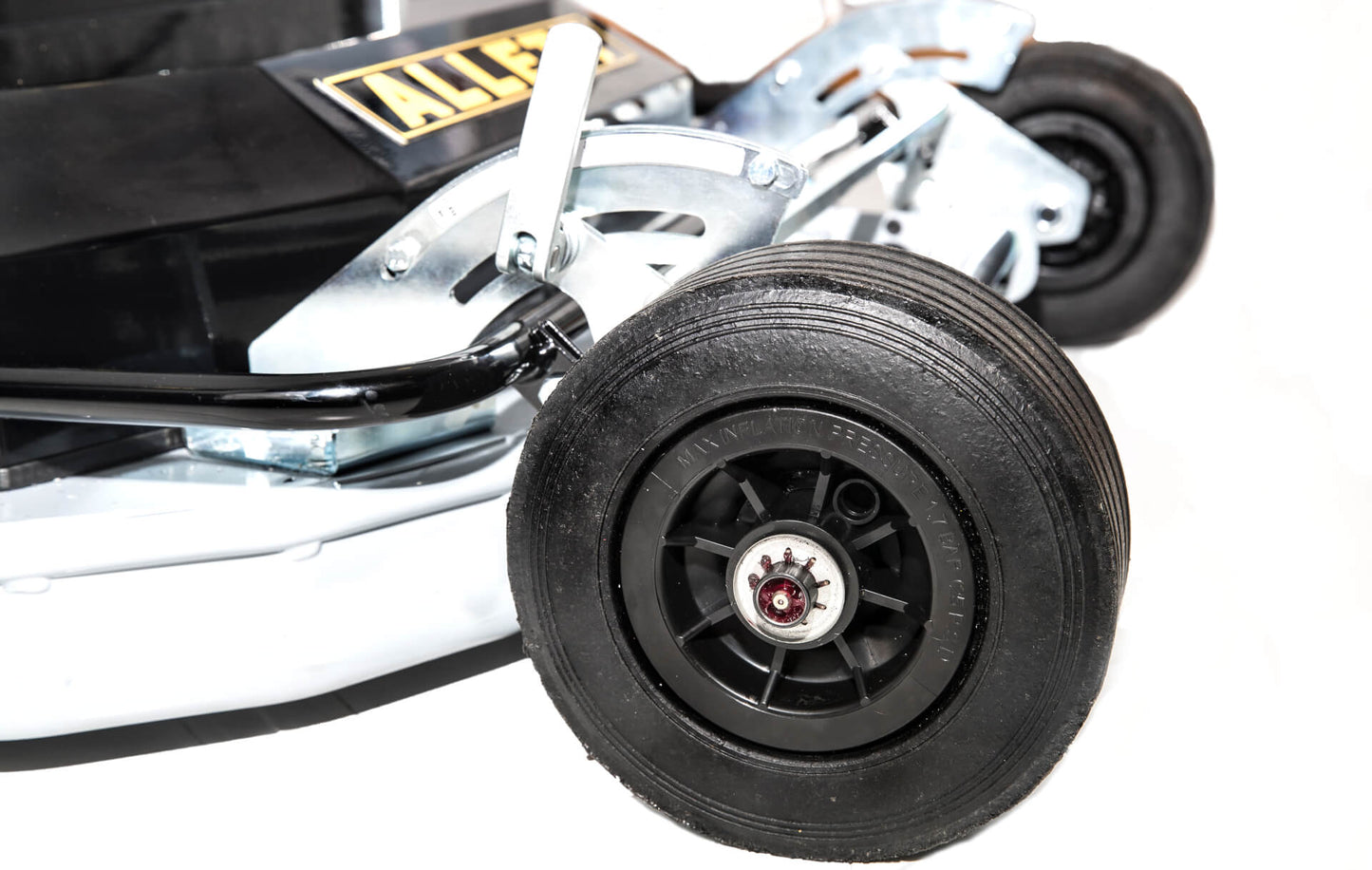

Reliability and durability are inbuilt in the Uplift 86 with chain self-tensioning, bearing protection and solid front tyres running on bronze bushes. The cutting height is completely variable from 1.5cm to 7.5cm (0.59in – 2.3in) with a steel fabricated cutter deck and three-piece, full width, steel roller making this a tough, robust and versatile mower.
Twin bladed high lift vacuum system designed for debris collection after matches- Strong suction and amazing presentation

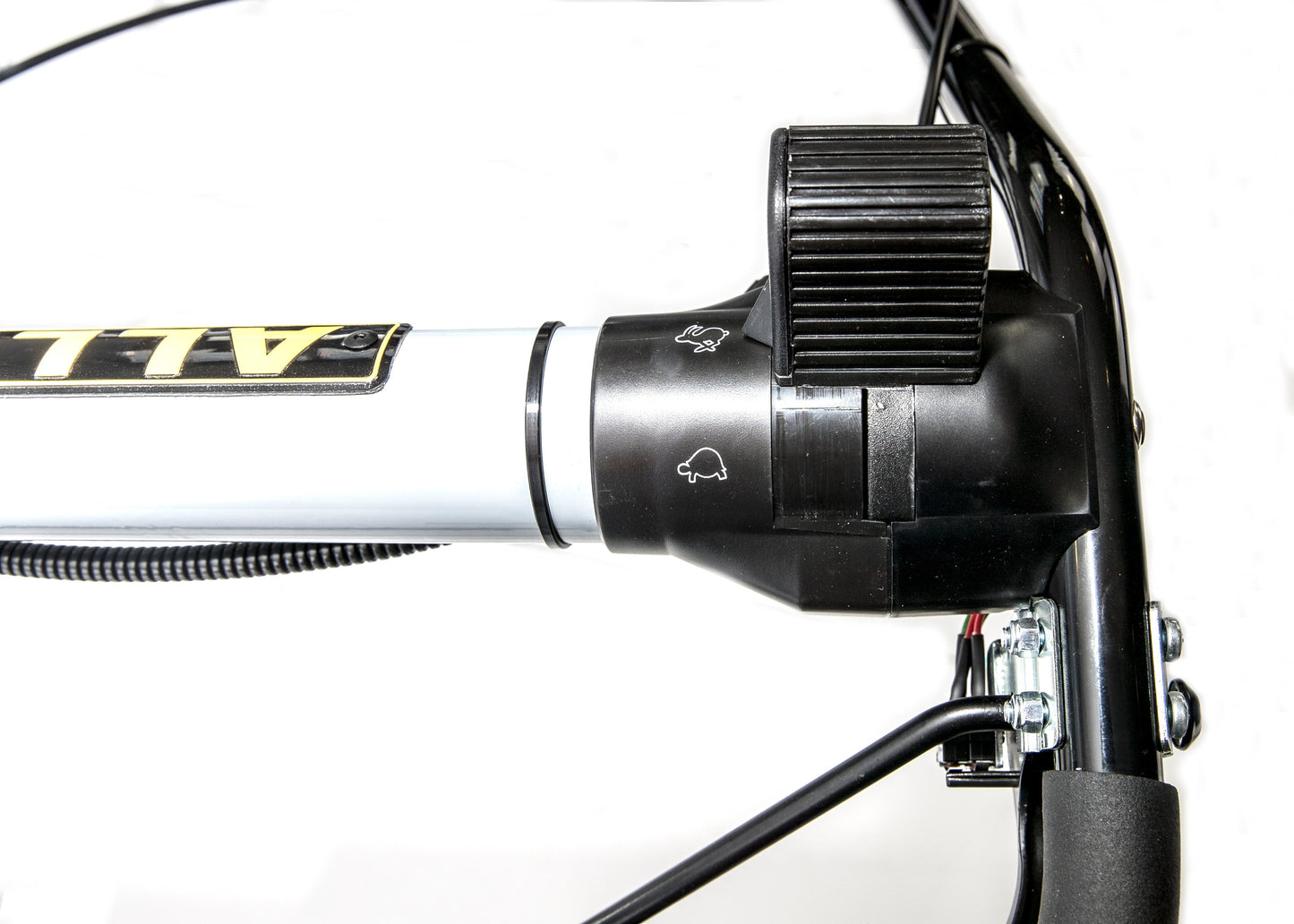

5-speed gearbox

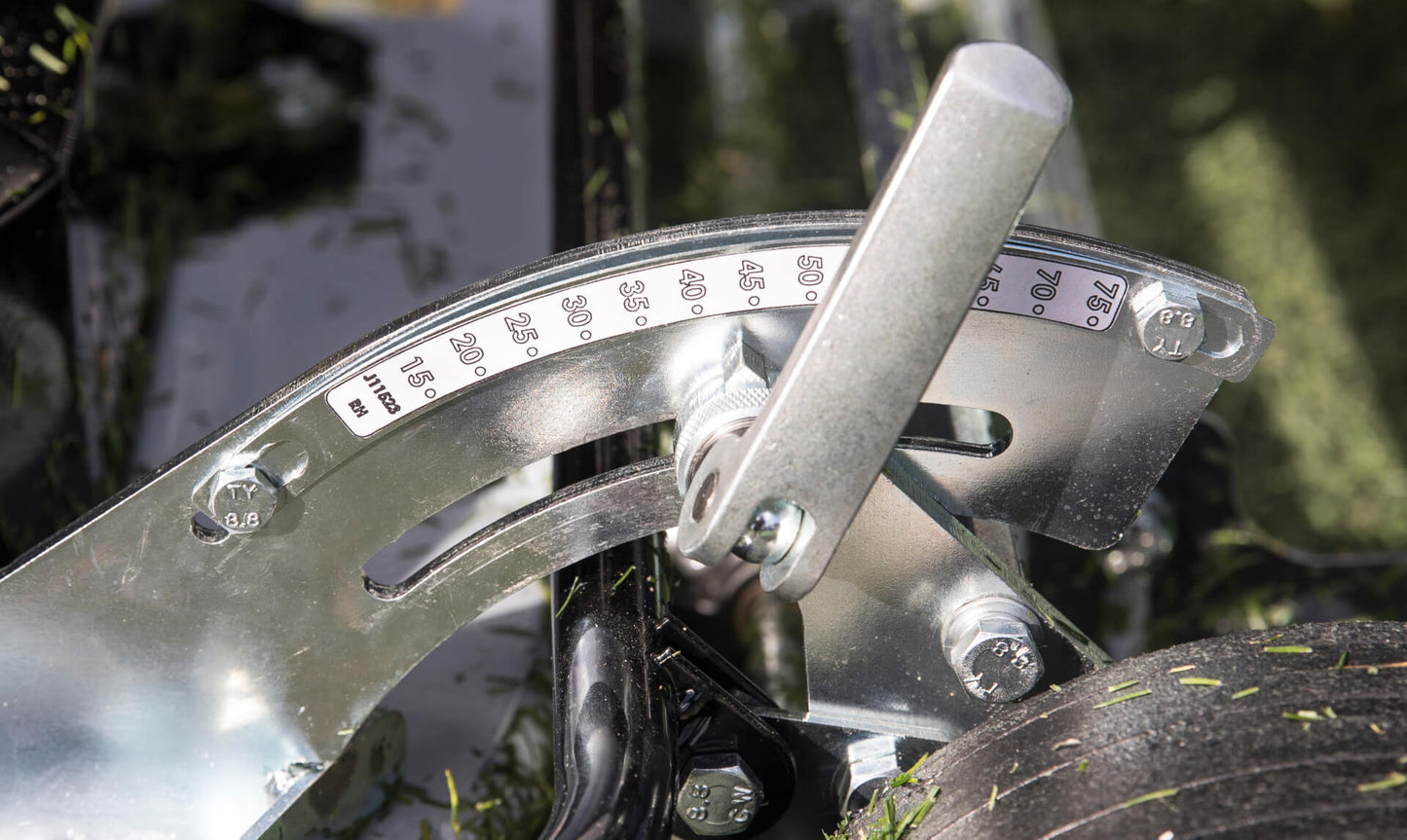

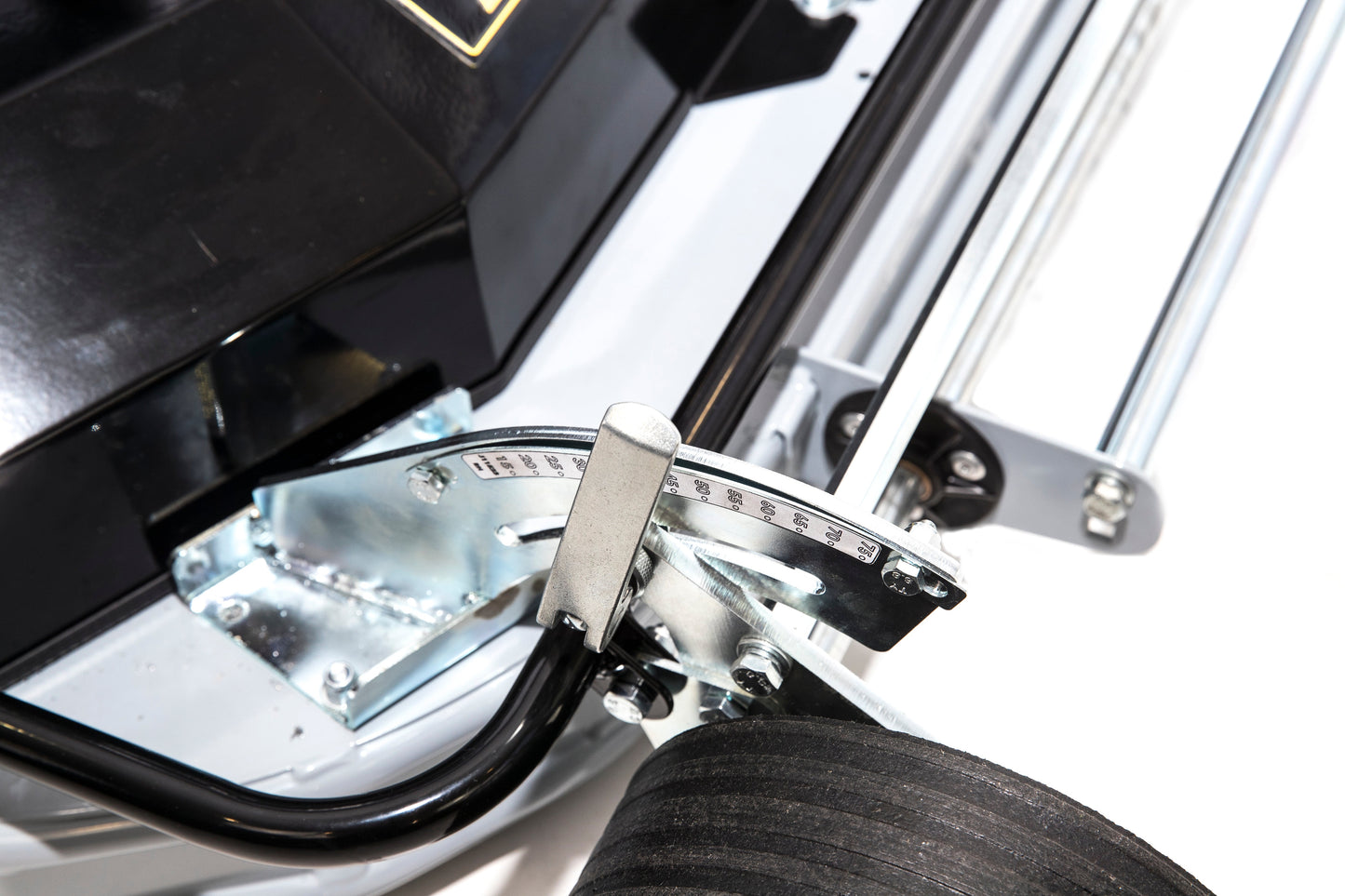

Cutting height- Adjustable from 15-75mm ( 0.6 inch to 2.96in)- 2 point micro height adjusters with front wheel height locking

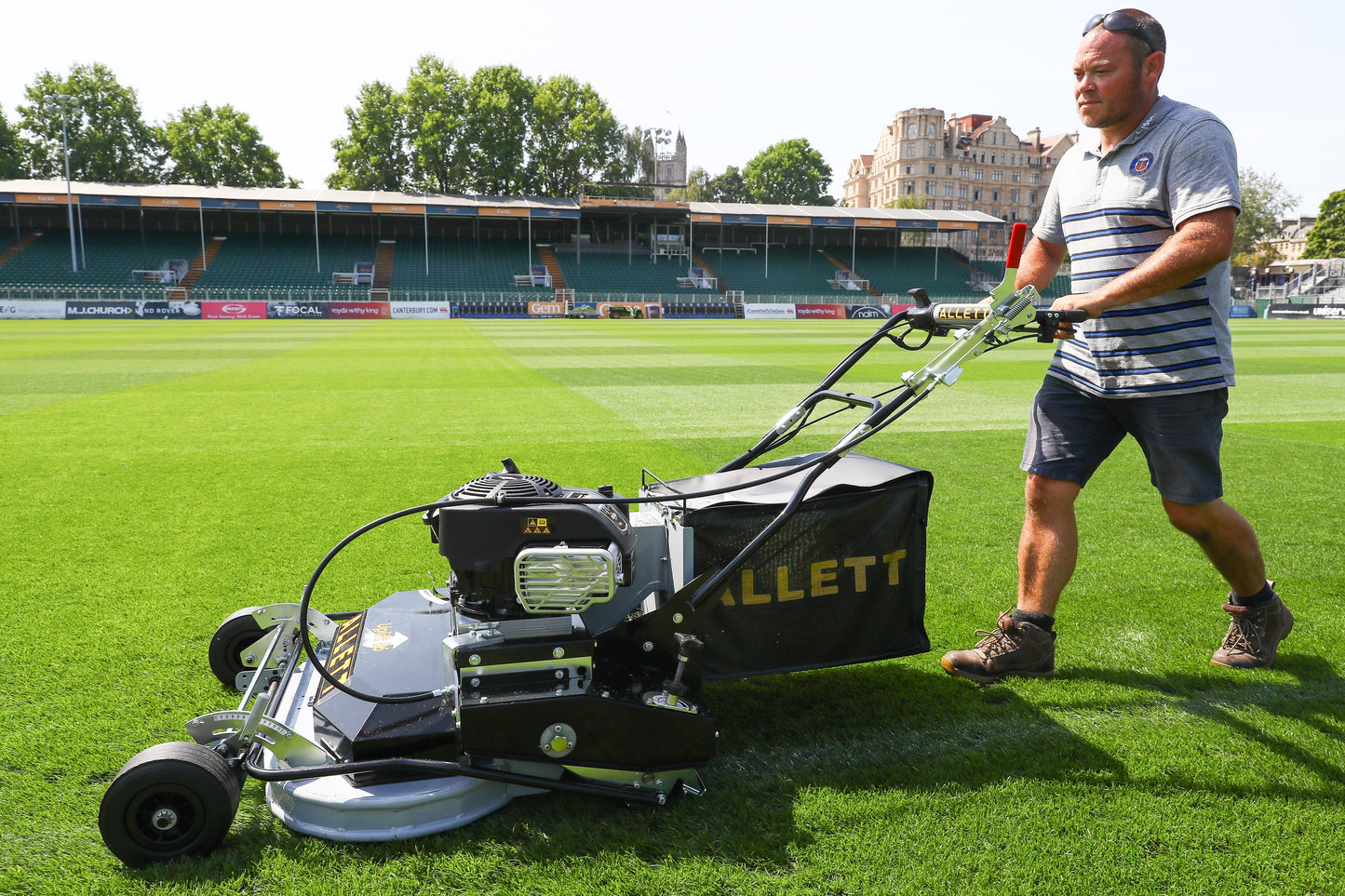

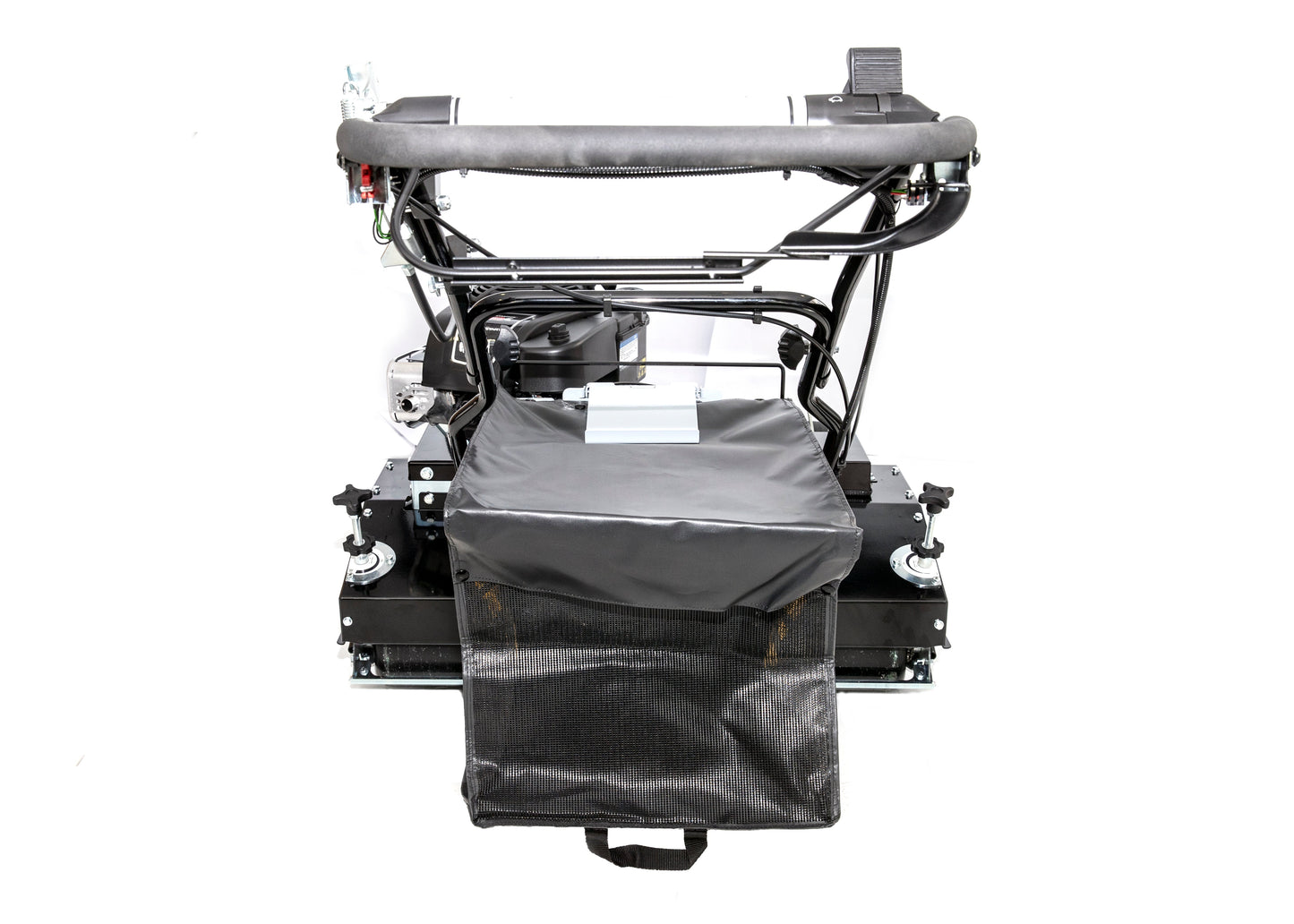

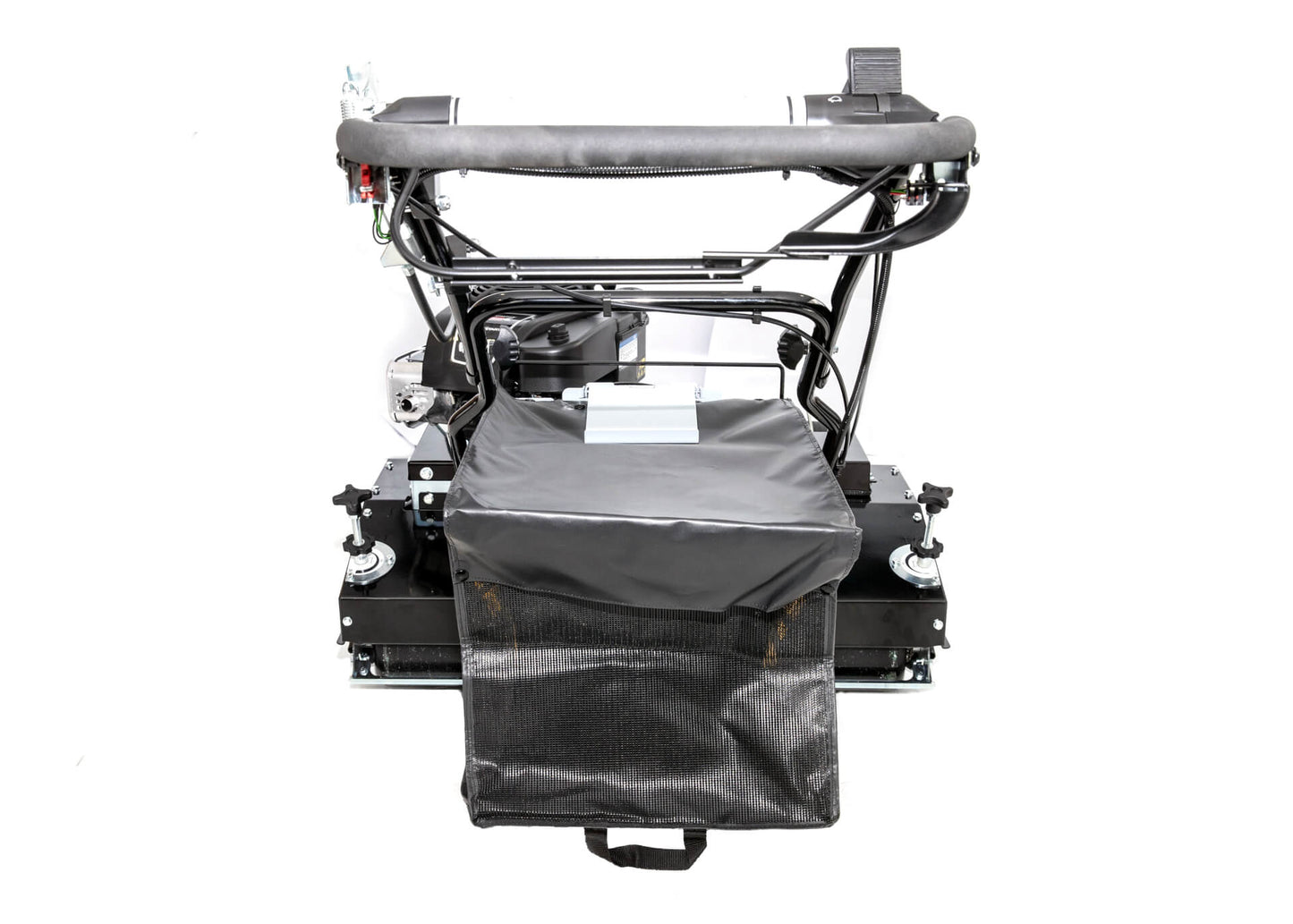

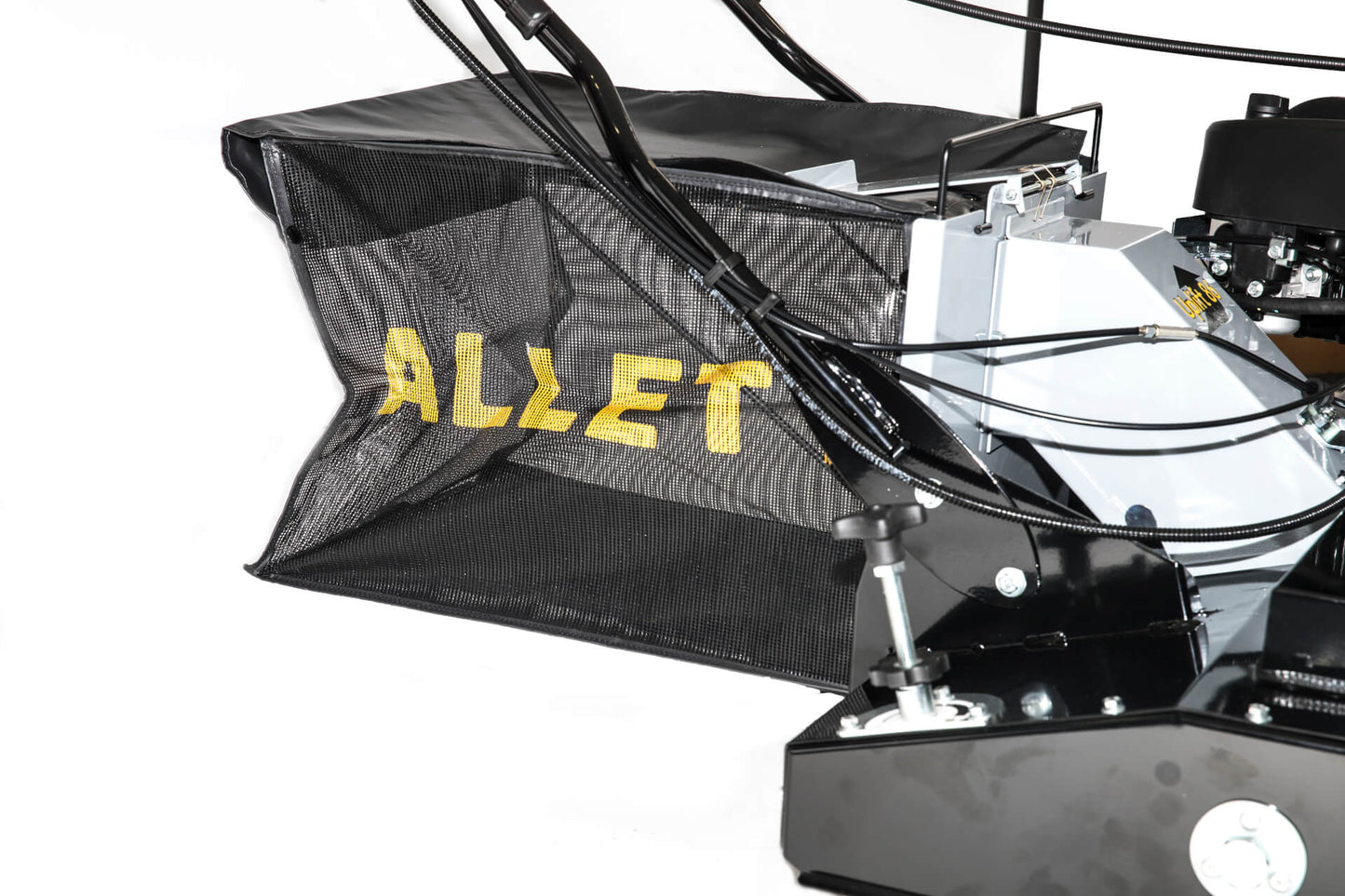

90-litre grass collector

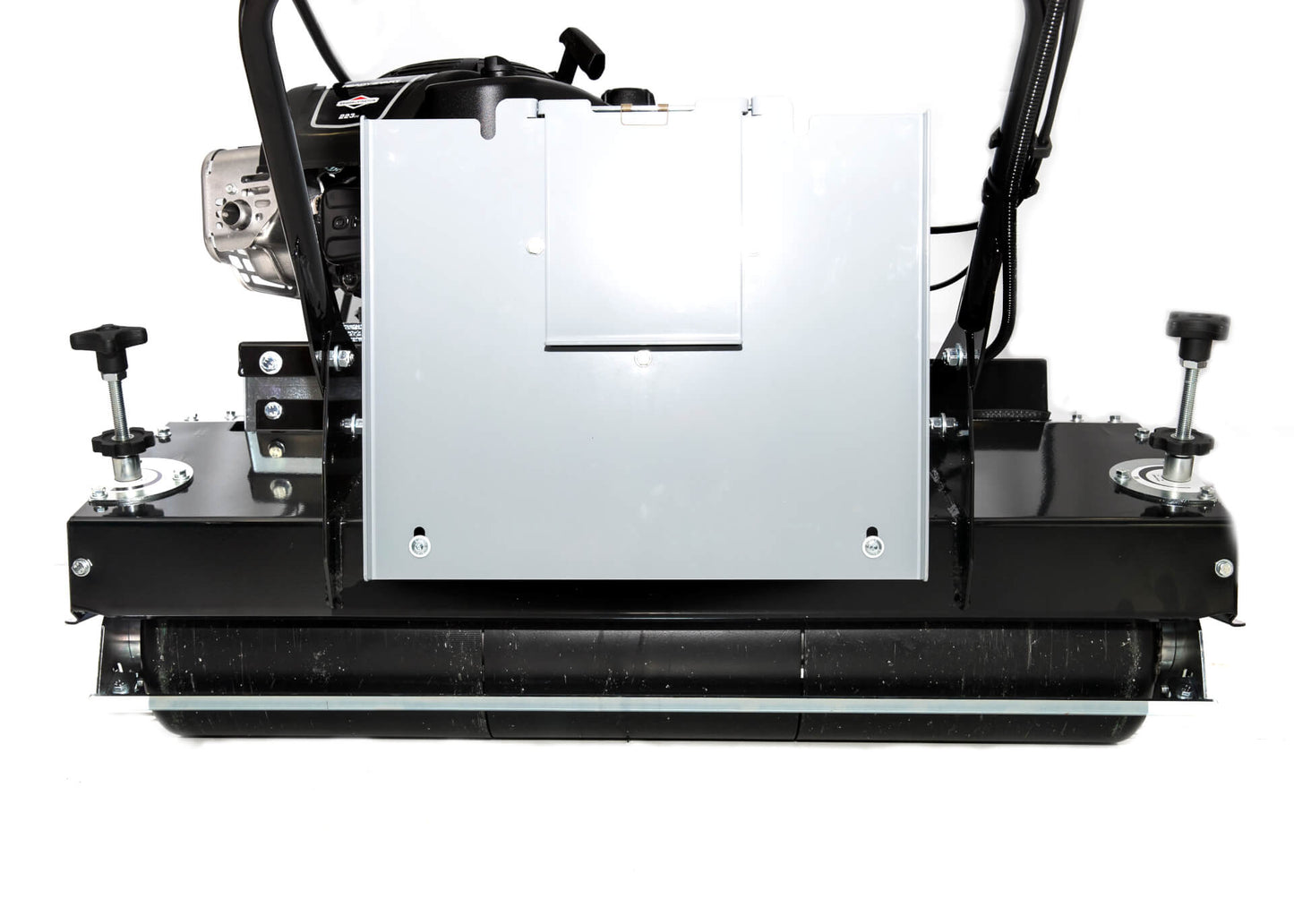

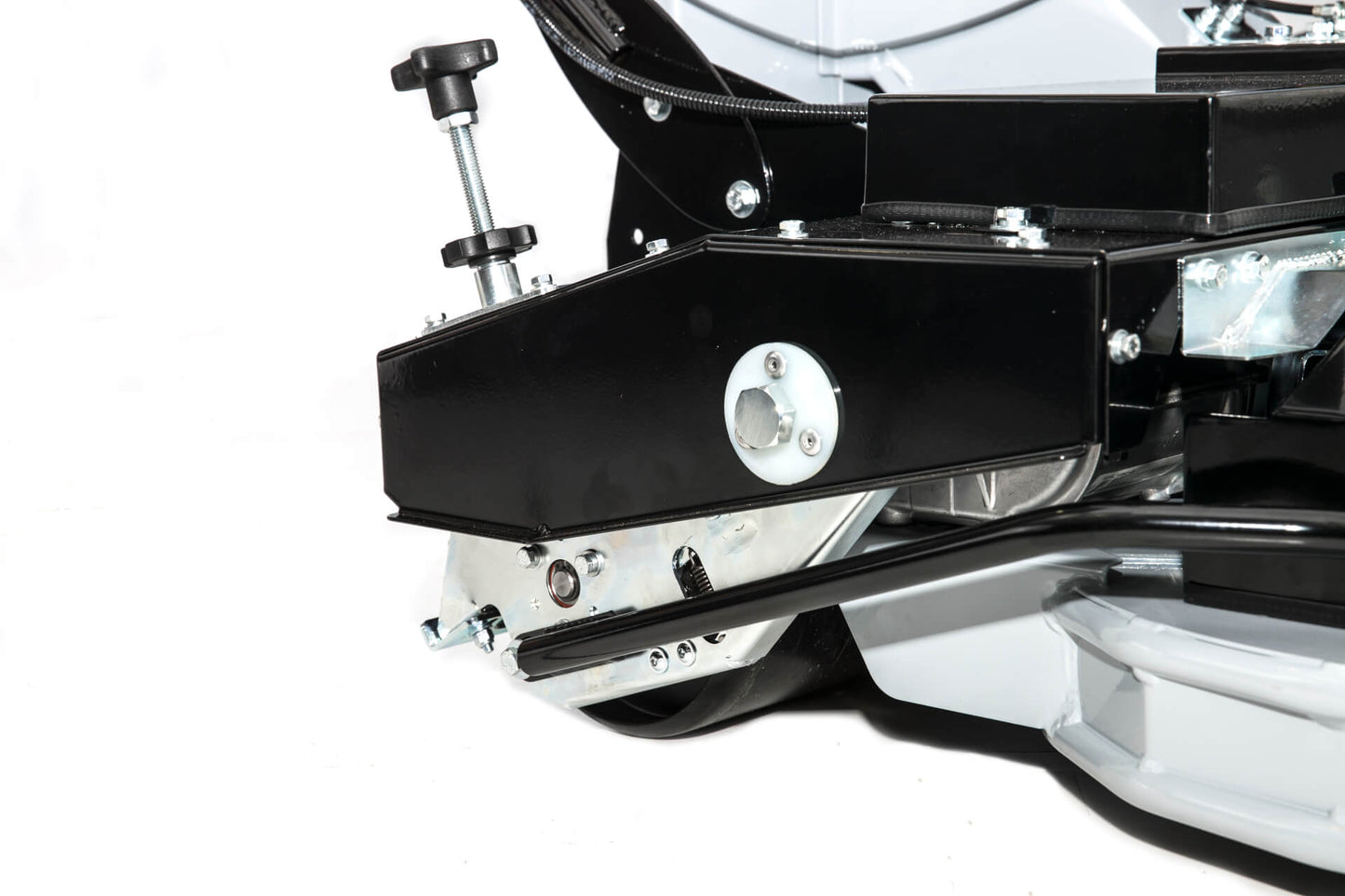

Rear roller 3 piece steel, full width rear roller with differential Roller Drive 5 speed heavy duty gear box with cast Aluminium housing and steel gears
Grass bag capacity 90 liters
Engine 223cc Briggs and Stratton® 950E vertical crankshaft engine featuring “ReadyStart” ® . Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Blade system 2 x 457mm (18in) high lift blades, contra-rotating and timed producing high volume air flow

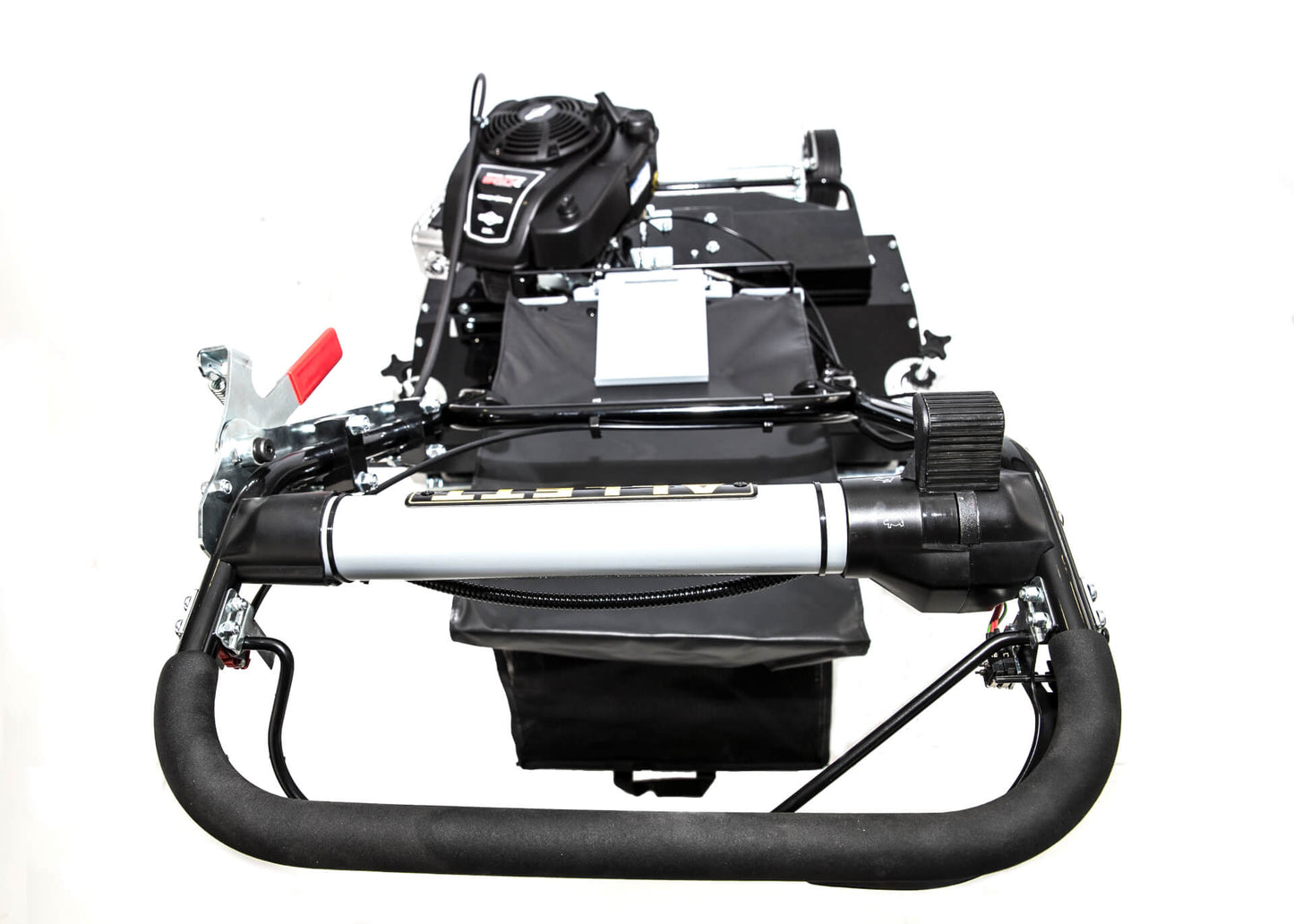

Blade drive Separate bale bar for roller drive & blades allows 3 modes 1) Roller drive only, 2) Blades only or 3) Roller drive and Blades. Belt drive to spindle. Blade brake clutch (operator presence controls)
